Description | Features | Order

In the vision Jepssen management and sharing total resources (Digital Smart Share), the modules JWL Wireless Lan play a fundamental role.



«Perfect in order to "tie up" the bricks of Jepssen unitary technology»
With l 'use of the various modules JWL Wireless Lan create a network within the company or of your own home to connect and bring together all the products Jepssen (DigitalBox, MicroBox, MediaBox, Droid TV, PAN, etc.), computers, smartphones, tablets and anything else can be used for internal and external communication channels (TV, IPTV, audio and Ultra HD 4K video, data, telephony) becomes easy and fast.



«A multimedia net quick and sure»
The high performance in terms of speed and reliability (up to 300 Mbps) are able to satisfy any requirement of use in the home or business. The JWL Wireless Lan modules incorporate a 2.4Ghz/5Ghz Dual Mode transceiver that covers a range of up to 100 meters (indoor) or 300 meters (outdoor) as the crow flies and are made in accordance with 802.11ac (WiFi), for ensure full compatibility with all other devices conforming to this standard and for absolute data security, preventing access to unauthorized users.

Using the JWL Repeater modules in areas where the signal may be weak or absent you can enhance your reception and create a network coverage almost unlimited.

The standard WiFi is spreading so quickly that now not only individual users for private use (factories, offices, housing), but also hotels, airports, hospitals, etc., Often with specially dedicated areas and highlighted with Wi-logo LAN, and have adopted it as additional service to offer its customers the opportunity to network quickly and easily than ever before.



«A net in constant evolution»
With the JWL Wireless Lan modules both the office or home net becomes dynamic, we mean, formed by a certain quantity of devices or places that changes, each time, according to one’s need. It’s possible to insert more new modules and, so, further resources to share in net, or to move the modules you already have from one room to another. It's possible, using the same modules to change the employment during the day: such as, to use one in a room in order to see a movie and to move it soon after into another room in order to surf Internet, even if the telephone connection (56K, ISDN or ADSL) is hundred meters far.



«Full compatibility»
The JPL PowerLine modules, to ensure a universal application, works on all popular operating systems Microsoft Windows 10 / 8.1 / 7 / Vista / XP / Linux / iOS / Android.

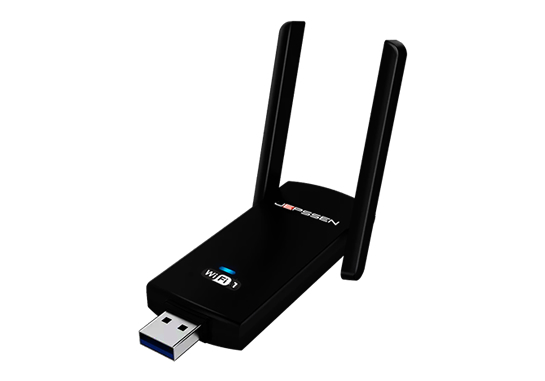

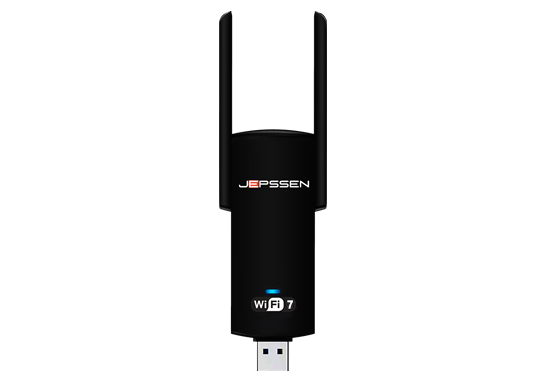

JWL USB PEN - Features

• USB 2.0 Plug&Play
• standard 802.11n (WiFi)
• 2.4GHz frequency range
• data rate up to 300 Mbps
• transmit power 17dBm
• indoor/outdoor(100/300Meters) wireless range
• Ad-Hoc (Peer-to-Peer), Infrastructure network configuration
• MIMO technology
• 64/128 bit data encryption (WPA2, WPA, WEP)
• supports Microsoft Windows 10 / 8.1 / 7 / Vista / XP / Linux / iOS / Android operating systems
• dimension 5.9 x 1.1 x 3.9 cm

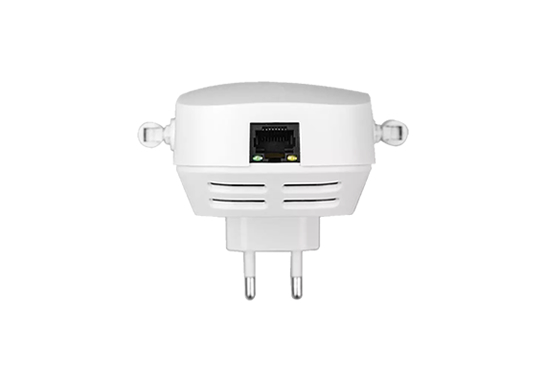

JWL REPEATER - Features

• external module with power supply (110-230V)
• standard 802.11n (WiFi)
• 2.4GHz frequency range
• data rate up to 300 Mbps
• transmit power 17dBm
• indoor/outdoor(100/300Meters) wireless range repeater
• 64/128 bit data encryption (WPA2, WPA, WEP)
• supports Microsoft Windows 10 / 8.1 / 7 / Vista / XP / Linux / iOS / Android operating systems
• internal power supply DC5V/1A
• reset button WPS
• Status LED (1xLAN, 1xWLAN, 1xWPS, 1xPower)
• RJ45 LAN port
• RJ45 cable
• dimension 7.4 x 4.8 x 5.0 cm

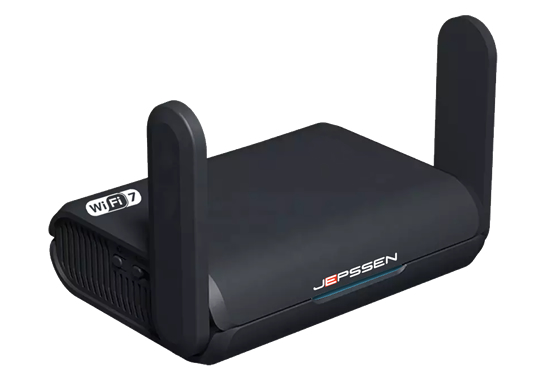

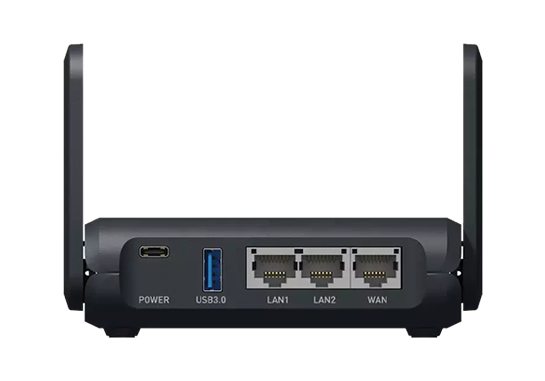

JWL ROUTER - Features

• external module with power supply (110-230V)
• standard 802.11n (WiFi)
• 2.4GHz frequency range
• data rate up to 300 Mbps
• transmit power 17dBm
• indoor/outdoor(100/300Meters) wireless range repeater
• supports Router, Client, Bridge, Repeater, AP mode
• 2T2R MIMO
• QoS function (VoIP and multimedia streaming)
• Supports SSID broadcast control
• Supports WMM and WMM-APSD
• 64/128 bit data encryption (WPA2, WPA, WEP)
• supports Microsoft Windows 10 / 8.1 / 7 / Vista / XP / Linux / iOS / Android operating systems
• internal power supply DC5V/1A
• reset button WPS
• Status LED (1xLAN, 1xWAN, 1xWPS, 1xWLAN, 1xPower)
• 2xRJ45 LAN ports
• RJ45 cable
• dimension 11.0 x 6.0 x 7.0 cm

JWL AC USB PEN - Features

• USB 2.0 Plug&Play
• standard 802.11ac (WiFi)
• 2.4/5GHz frequency range
• data rate up to 1.3 Gbps
• transmit power 17dBm
• indoor/outdoor(100/300Meters) wireless range
• Ad-Hoc (Peer-to-Peer), Infrastructure network configuration
• MIMO technology
• 64/128 bit data encryption (WPA2, WPA, WEP)
• supports Microsoft Windows 10 / 8.1 / 7 / Vista / XP / Linux / iOS / Android operating systems
• dimension 5.9 x 1.1 x 3.9 cm

JWL AC REPEATER - Features

• external module with power supply (110-230V)
• standard 802.11ac (WiFi)
• 2.4/5GHz frequency range
• data rate up to 1.3 Gbps
• transmit power 17dBm
• indoor/outdoor(100/300Meters) wireless range repeater
• 64/128 bit data encryption (WPA2, WPA, WEP)
• supports Microsoft Windows 10 / 8.1 / 7 / Vista / XP / Linux / iOS / Android operating systems
• internal power supply DC5V/1A
• reset button WPS
• Status LED (1xLAN, 1xWLAN, 1xWPS, 1xPower)
• RJ45 LAN port
• RJ45 cable
• dimension 7.4 x 4.8 x 5.0 cm

JWL AC ROUTER - Features

• external module with power supply (110-230V)
• standard 802.11ac (WiFi)
• 2.4/5GHz frequency range
• data rate up to 1.3 Gbps
• transmit power 17dBm
• indoor/outdoor(100/300Meters) wireless range repeater
• supports Router, Client, Bridge, Repeater, AP mode
• 2T2R MIMO
• QoS function (VoIP and multimedia streaming)
• Supports SSID broadcast control
• Supports WMM and WMM-APSD
• 64/128 bit data encryption (WPA2, WPA, WEP)
• supports Microsoft Windows 10 / 8.1 / 7 / Vista / XP / Linux / iOS / Android operating systems
• internal power supply DC5V/1A
• reset button WPS
• Status LED (1xLAN, 1xWAN, 1xWPS, 1xWLAN, 1xPower)
• 2xRJ45 LAN ports
• RJ45 cable
• dimension 11.0 x 6.0 x 7.0 cm


WLAN & ROUTER - Order
Select a product
To request the products enter the quantity in the related field.
WLAN & ROUTER Q.TY
WLAN USB PEN
WLAN REPEATER
WLAN ROUTER
WLAN AC USB PEN
WLAN AC REPEATER
WLAN AC ROUTER

Enter your data
Choose your favourite shipment way. To confirm your order click on the Send button.

NAME/COMPANY *
ADDRESS
POSTAL CODE
CITY - COUNTRY
EMAIL *
TEL *
MOBILE
FAX
VAT NUMBER
DELIVERY WITHIN
DELIVERY


* Fields marked with an asterisk are required

NOTES
·the delivery of the order is exclusively entrusted to the Jepssen Dealers and Jepssen Distributors
·the official quotations showed in Price List Jepssen



Image Gallery

JEPSSEN - WLAN USB PEN

Photo Gallery 1

JEPSSEN - WLAN REPEATER

Photo Gallery 2

JEPSSEN - WLAN ROUTER AP REPEATER

Photo Gallery 3
